Description

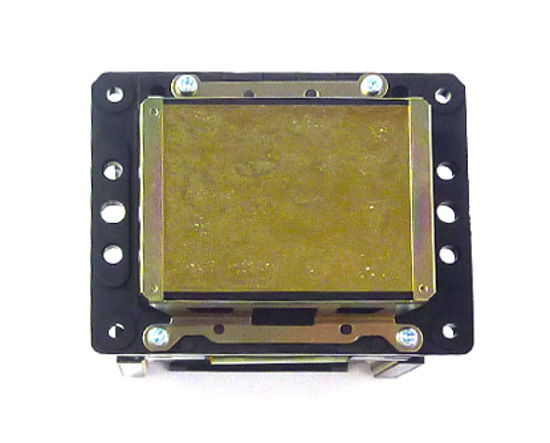

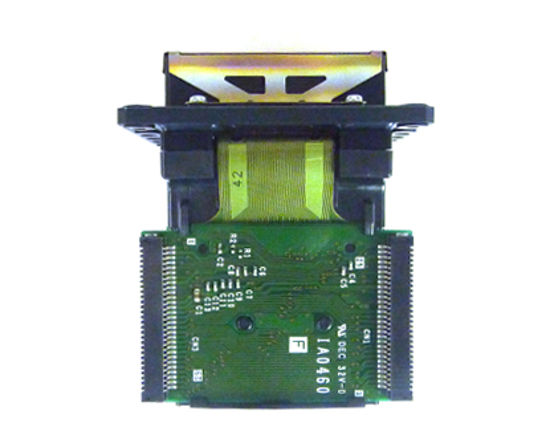

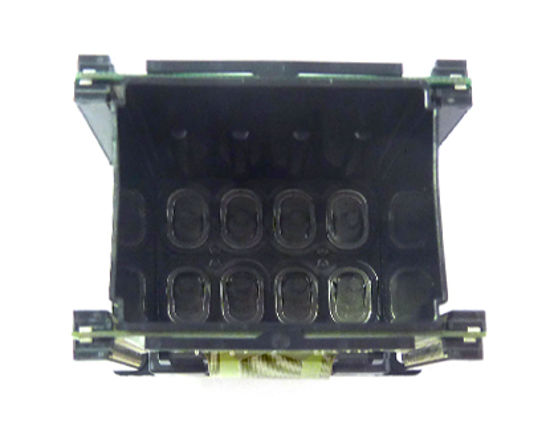

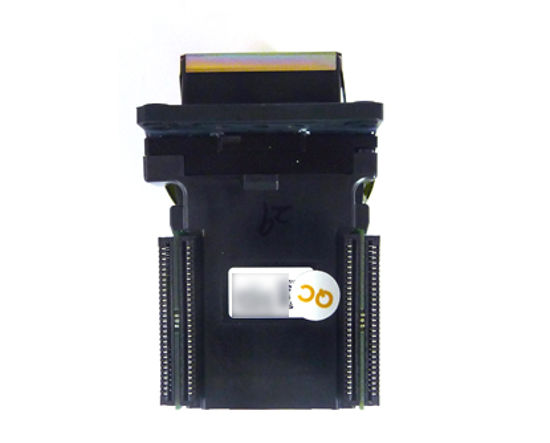

This printhead is suitable for Mutoh Valuejet 1324 / 1624 / 426UF and 1617H. This printhead has a native resolution of 360 dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.
This is the original Mutoh part (number DG-43988). This printhead replaces part numbers DG-42271, DG-43345, DG-45279 and DG-42987. DH-40865 and DG-43988 DH-40274 can replace each other, however DH-40865 has a better chemical resistance for UV ink. Mutoh recommends to use DH-40865 on LED-UV printers.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Product Specifications:
- Technology: Micro-Piezo
- Native resolution: 360 dpi
- Min. Droplet Size: 1.5 pico litre
- Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
- Firing Frequency: 8 kHz
- Ink Compatibility: eco-solvent and mild solvent
- Damper type: requires DX6 Valve Dampers
This printhead carries a manufacturer warranty. Country of origin : Japan
We recommend to change the head cables when installing a new printhead.
Printer compatibility:
Mutoh ValueJet 1324, Mutoh ValueJet 1617H, Mutoh ValueJet 1624, Mutoh ValueJet 1624W, Mutoh ValueJet 1624WX, Mutoh ValueJet 1624X, Mutoh ValueJet 1626UH, Mutoh ValueJet 1627MH, Mutoh ValueJet 1628X, Mutoh ValueJet 1638, Mutoh ValueJet 1638W, Mutoh ValueJet 1638WX, Mutoh ValueJet 1638WX, Mutoh ValueJet 1638X, Mutoh ValueJet 1938TX, Mutoh ValueJet 1948WX, Mutoh ValueJet 2638, Mutoh ValueJet 2638X, Mutoh ValueJet 426UF, Mutoh ValueJet 628, Mutoh ValueJet 628W, STS XPJ-1682D
