Description

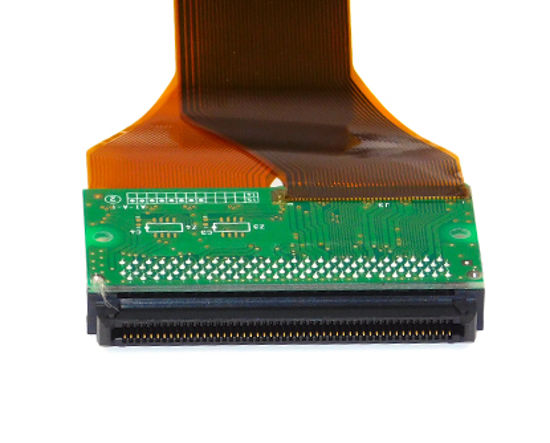

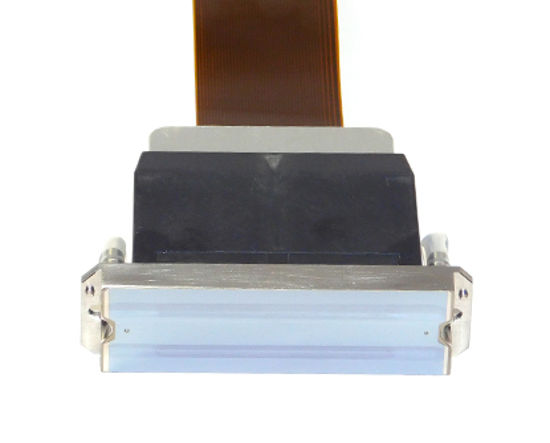

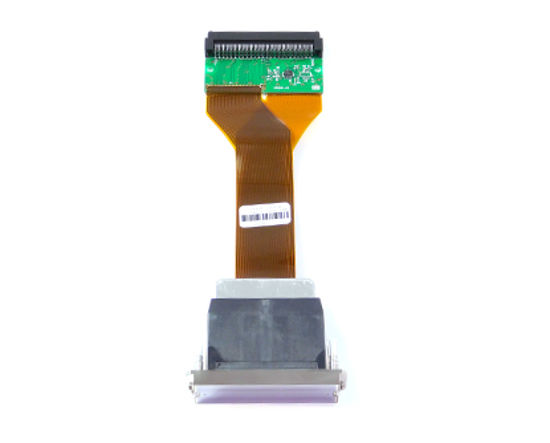

This GEN5 UV printhead is suitable for a range of UV, water and solvent printers (Ricoh part number N221414J / N221414T). It has a total of 1.280 nozzles. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 248mm long in total (head body + cable + connectors). The head cable is 148 mm long. This printhead is the original Durst Alpha 190 / 330 printhead. This printhead comes with the hose barbs which can easily be removed if needed.

This printhead doesn’t work on the EFI printers that need N221414B instead.

The following items are expressly excluded from warranty coverage:

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Dimensions: 89 x 25 x 69 mm (excluding cables)
• Head materials: SST, Nickel alloy and Epoxy Adhesive
• Nozzle plate surface: Coated SST
• Number of nozzles: 4 x 320 nozzles
• Nozzle spacing: 0.1693 mm
• Nozzle density: up to 600 npi
• Piezo type: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 7 pl
• Drop volume range: 7 – 35 pl
• Drop velocity: 7 m/s
• Jetting frequency: Up to 60 kHZ
• Ink compatibility: UV Inks
• Life: 100 billion actuations per nozzle

Printer compatibility:
Agfa Jeti Mira MG2716 S/HS, Agfa Jeti Mira MG2732 S/HS, Agfa Jeti Tauro H2500, Agfa Jeti Titan HS, Agfa Jeti Titan S, Akad NovaJet UV M6, CET Color Q5-1000, CET Color Q5-1000h, CET Color Q5-250, CET Color Q5-250h, CET Color Q5-500, CET Color Q5-500h, Docan 1212 UV, Docan FR3210, Docan FRT3116, Docan M10, Docan M6, Docan M8, Durst Alpha 190, Durst Alpha 330, Handtop HT1600UV HR4, Handtop HT1610UV FR4, Handtop HT2500UV HR8, Handtop HT2512UV-D FR8, Handtop HT3116UV FR8, Handtop HT3200UV HG12, Handtop HT3200UV HR8, Quantum Matan 5m
