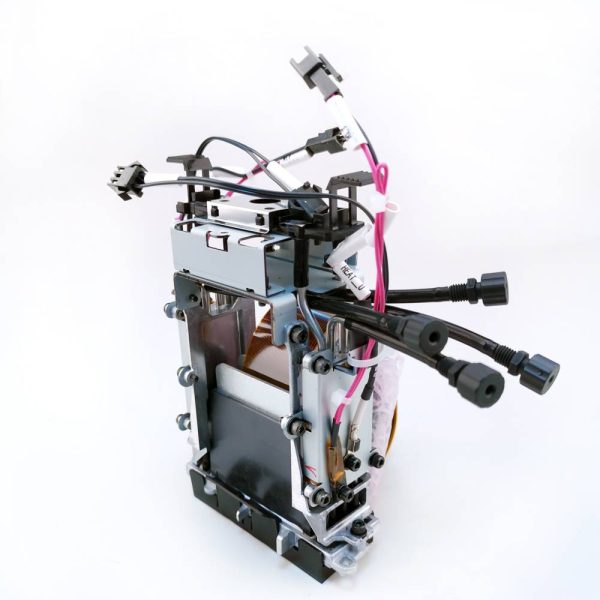

Ricoh gen5 print head for Mimaki JFX200 printer original print head MP-M022625

Ricoh gen5 print head for Mimaki JFX200 printer original print head MP-M022625.This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original

Product Specification:

  • Dimensions : 89 x 25 x 69 mm (excluding cables)
  • Head materials : SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface : Coated SST
  • Number of nozzles : 4 x 320 nozzles
  • Nozzle spacing : 0.1693 mm
Call Now
Contact Us
  • Pickup: Available today at store
  • 1 Year Local Official Distributor Warranty
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

Ricoh gen5 print head for Mimaki JFX200 printer original print head MP-M022625

Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 – 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle
