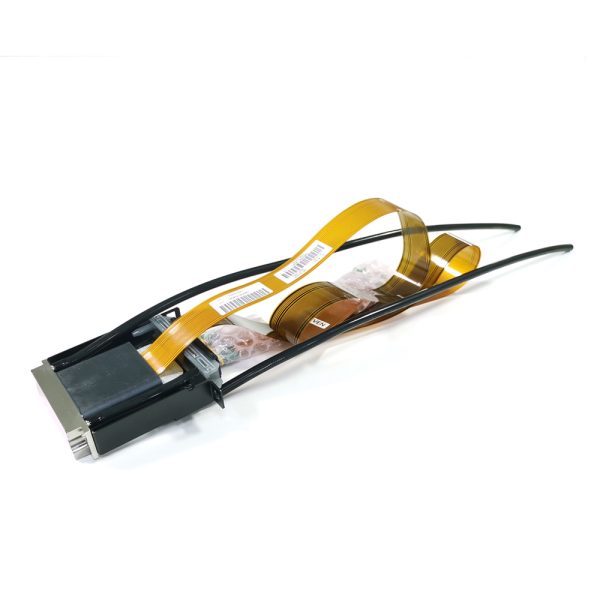

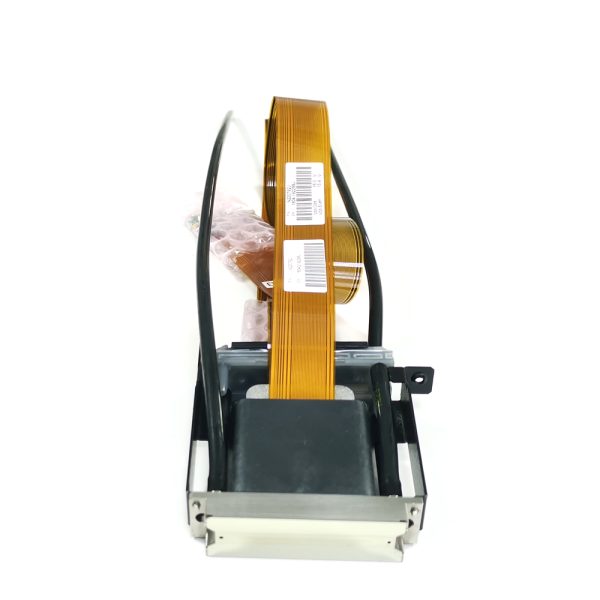

Ricoh gen4 print head for Mimaki UJF3042 MP-M010010 original printhead

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor.

Product Specification:

  • Size : 63 x 63 x 16,2 mm (excluding cables)
  • Head Materials : SST, Ni and Epoxy Adhesive
  • Nozzle Plate Surface : Non-coated SST
  • Number of Nozzles : 2 x 192 nozzles
  • Nozzle Spacing : 0,1693 mm
  • Piezo Type : D33 Stacked PZ
Call Now
Contact Us
  • Pickup: Available today at store
  • 1 Year Local Official Distributor Warranty
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

Ricoh gen4 print head for Mimaki UJF3042 MP-M010010 original printhead

 SPECIFICATION

  • Size: 63 x 63 x 16,2 mm (excluding cables)
  • Head Materials: SST, Ni and Epoxy Adhesive
  • Nozzle Plate Surface: Non-coated SST
  • Number of Nozzles: 2 x 192 nozzles
  • Nozzle Spacing: 0,1693 mm
  • Piezo Type: D33 Stacked PZT
  • Temperature Control: Integrated Heater and Thermistor
  • Operator Temperature range: Up to 60° C
  • Native Drop Volume: 7 pl
  • Drop Volume Range: 5-25 pl with greyscale
  • Jetting Frequency: Up to 30 kHZ
  • Life: 100 billion actuations per nozzle
