Description

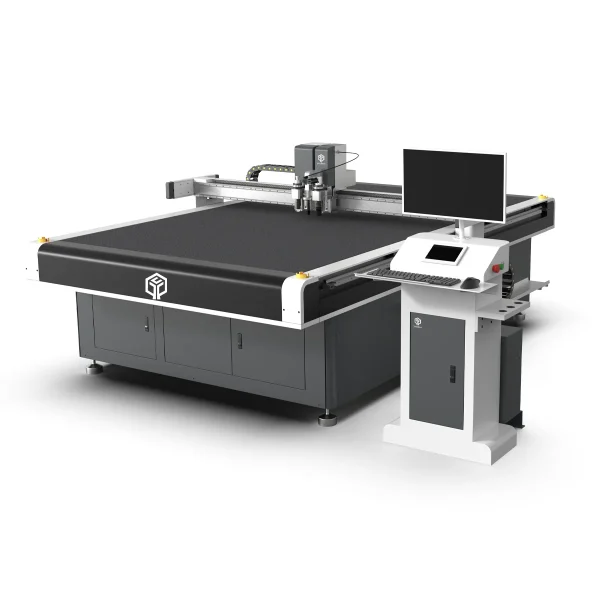

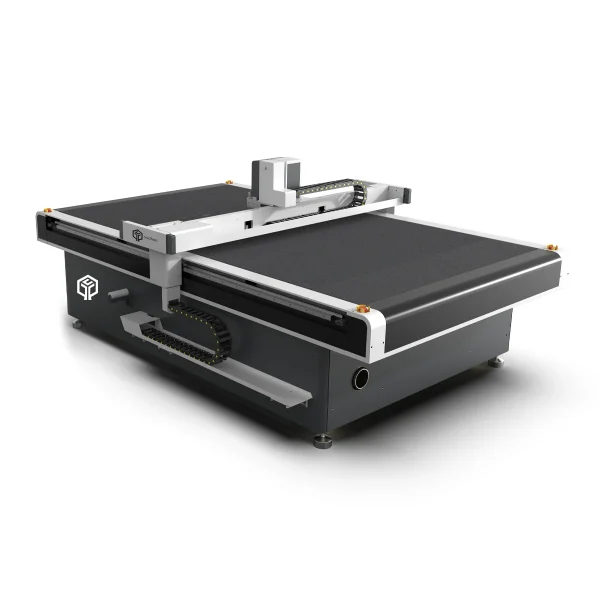

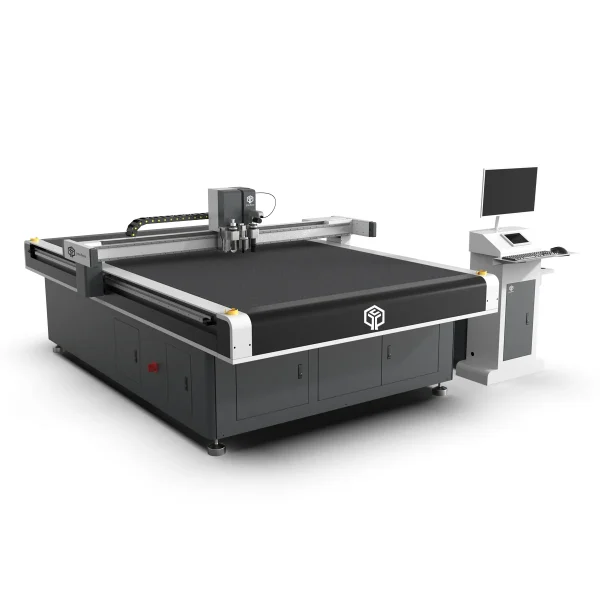

Yuchon label cutting machine can realize through cutting, kiss cutting, milling, punching, creasing and marking function with high speed and high precision. It is quite suitable for sample making, short run and mass production in sign, advertising printing and packaging industries.
Product Parameter
| Model | YC-1625AL（customizable） |
| Working area | 2500mm*1600mm |
| Max Cutting speed | 1200mm/s |
| Cutting tolerance | ±0.1mm |
| Cutting thickness | 0.1-10mm |
| Multifunctional head | Kiss cutting tool,Creasing Wheel,Punching tool |
| Applicable materials | Sticker,vinyl,pvc stickers,Self adhesive,KT board,corrugated cardboard |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime |
| Safety device | Emergency button, anti-collision device, infrared sensor |
| Transmission interface | Ethernet |
| Drive system | Motor: Panasonic servo motor Guide rail and rack |
| Fixed mode | Vacuum absorb |
| Supply voltage | 220V 380V±10%,50HZ 60HZ |
| Rated power | 11KW |
