Description
✔ Clean & Precise Cutting

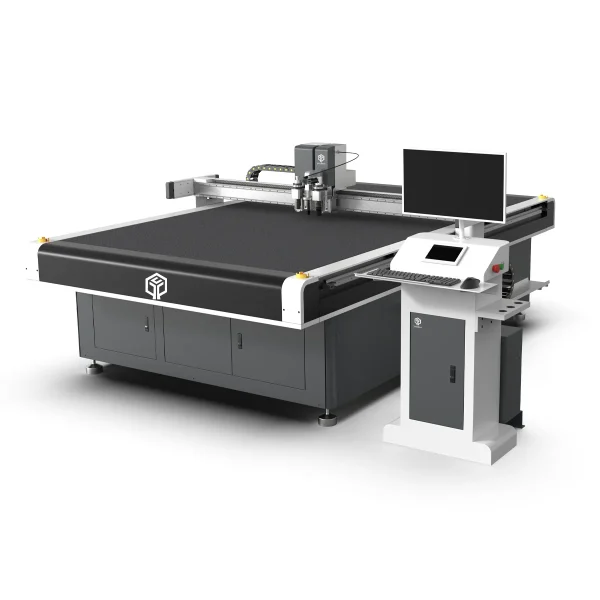

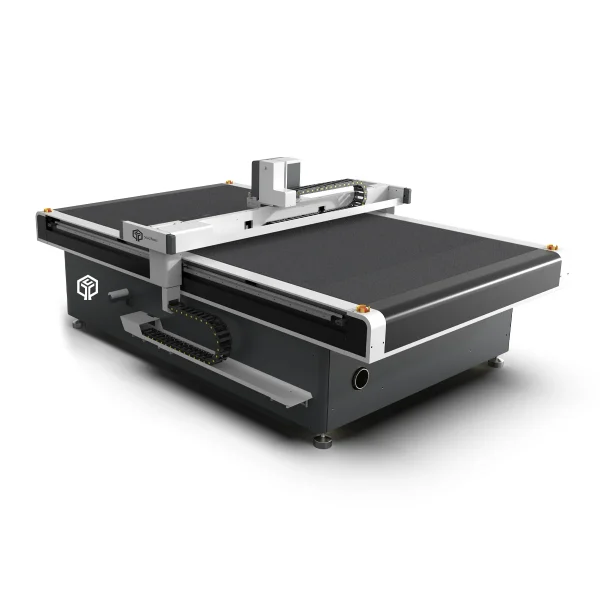

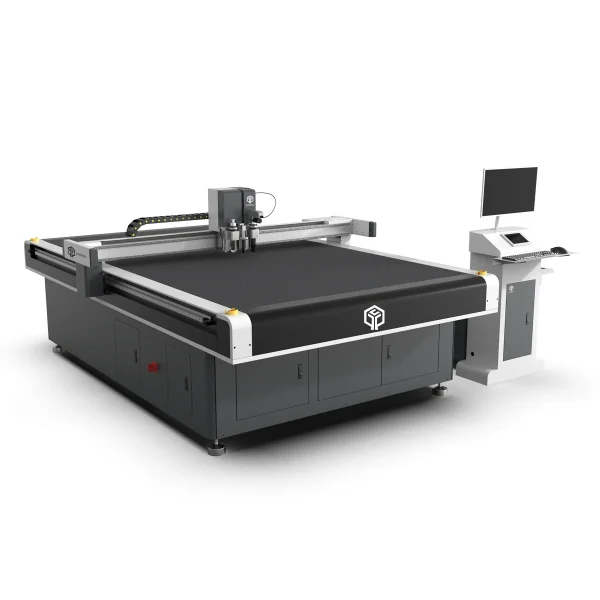

YUCHON vibrating knife cutting machine ensures smooth, crack-free edges—no burns, no melting—perfect for delicate acrylic sheets.
✔ No Heat, No Fumes
Unlike laser cutters, the acrylic CNC cutting machine uses vibrating knife cutting. That means no yellowing, no odor, and a safer, cleaner workspace.
✔ Optimized Material Usage
Smart nesting software maximizes every acrylic sheet, reducing waste and saving costs on materials.
✔ Versatile & Multi-material Friendly
Cut not only acrylic, but also foam, PVC, plastic board, and more—all on one machine.
✔ User-Friendly Operation
With intuitive software, upload your design (DXF/PLT), set parameters, and start cutting in minutes—no complex setup required.
✔ Reliable for Batch Production
Stable, high-speed performance makes it ideal for both large-volume and custom production.
| Model | YC-1625L |
|---|---|
| Working area | 2500mm*1600mm |
| Max Cutting speed | 1500mm/s |
| Cutting tolerance | ±0.1mm |
| Cutting thickness | 0.1-30mm |
| Multifunctional head | Oscillating knife cutting tool, V-cutting tool, Creasing wheel etc. |
| Applicable materials | Denim，canvas，textile，cloth，fabric，t-shirt，fur，foam, PVC, plastic board |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime |
| Safety device | Infrared blocking device，Emergency stop button switch, Intelligent anti-collision device. |
| Transmission interface | Ethernet |
| Drive system | Motor: Panasonic servo motor , SMTYCC Linear rail and rack |
| Fixed mode | Vacuum absorb |
| Supply voltage | 220V 380V±10%,50HZ 60HZ |
| Rated power | 11KW or others |
