Subtank Flow Low & Timeout Error
“A critical operational interlock designed to prevent air ingestion into the piezoelectric fluidic manifold of Inkcups 360 and Helix rotary printers.”
Fluidic Architecture
The automated loop from bulk storage to the carriage assembly.
Bulk Ink
5µ Filter
Sub-Tank
DUAL OPTICAL SENSING
IF (t > 90s) THEN TRIGGER EMERGENCY_HALT
Root Cause Field Matrix
Analysis of reported field incidents causing flow interruptions.
Primary Observation: Over 75% of “Flow Low” events are isolated to the 5-micron capsule filter reaching saturation.

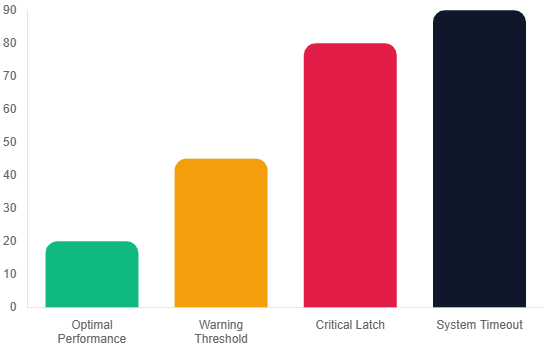

Fill Cycle Benchmarks
Comparing operational health vs. the hard timeout threshold.
Warning Threshold: If automated fill cycles exceed 45 seconds, schedule an immediate filter replacement.

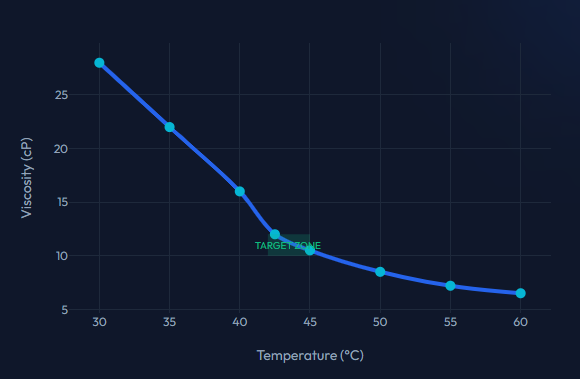

Viscosity Dynamics
UV ink fluidic resistance is inversely proportional to temperature. A deviation of just 5°C from the setpoint increases viscosity by nearly 40%, placing critical strain on the 24V supply pump.
Target Temp
42-45°C
Target cP
10-12 cP
Standard Field Resolution Protocol
Execute sequentially to restore fluidic integrity.
Safe Depressurization
Halt operations and vent residual air pressure from the bulk reservoir to prevent pressurized spraying.
Capsule Exchange
Install a new 5-micron solvent/UV compatible filter. Confirm flow arrow directionality.
Laminar Flush
Flush lines with system solution until bubble-free. Inspect quick-disconnect O-rings for air leaks.
Sensor Calibration
Wipe ink mist from optical prisms with lint-free swabs and verify mechanical float travel.
Thermal Equilibrium
Allow heater blocks to reach setpoint before initiating fill cycles to ensure nominal viscosity.
Verification Test
Target: < 25 seconds duration from low to high sensor actuation.
📅 Mandatory PM Intervals
250-300 Operating Hours
Unconditional replacement of all inline capsule filters.
Weekly Service
Deep clean sub-tank prisms and optical level sensor eyes.
Daily Startup Check
Manual agitation of White/Black high-density pigments.
Technical Warning
Failure to resolve flow delays will result in permanent piezo plate damage due to meniscus breakdown.
Prepared for Aura Sign Material Trading LLC
Abid Zaidi
Field Engineering Support
