Description

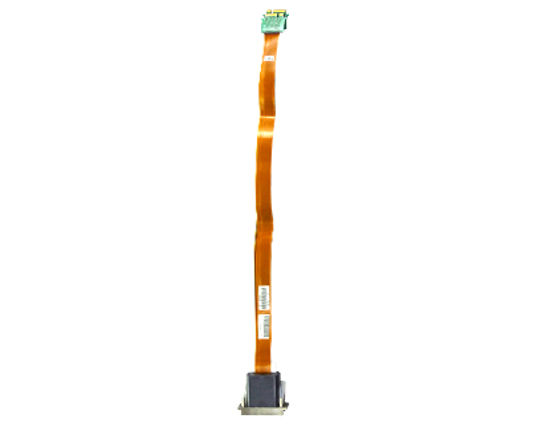

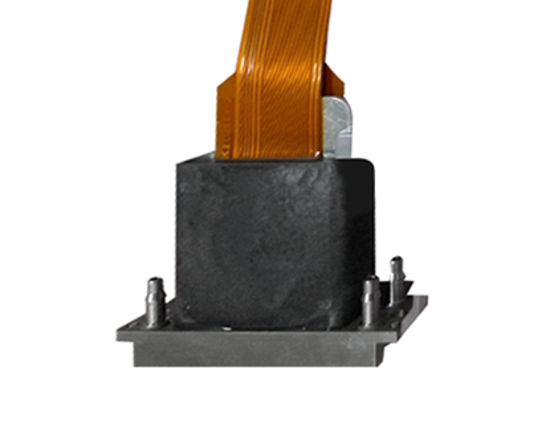

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This original printhead has an integrated heater and thermistor.

This printhead correspond to Mimaki part number M010010. This part includes the damper adapter M014497.

Technical Specifications

• Size: 63 x 63 x 16,2 mm (excluding cables)
• Head Materials: SST, Ni and Epoxy Adhesive
• Nozzle Plate Surface: Non-coated SST
• Number of Nozzles: 2 x 192 nozzles
• Nozzle Spacing: 0,1693 mm
• Piezo Type: D33 Stacked PZT
• Temperature Control: Integrated Heater and Thermistor
• Operator Temperature range: Up to 60° C
• Native Drop Volume: 7 pl
• Drop Volume Range: 5-25 pl with greyscale
• Jetting Frequency: Up to 30 kHZ
• Life: 100 billion actuations per nozzle

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Printer compatibility:
Ampla Digital Targa XT 1804, Ampla Digital Targa XT 1808, Ampla Digital Targa XT 1816, Ampla Digital Targa XT 3204, Ampla Digital Targa XT 3208, Ampla Digital Targa XT 3216, Mimaki UJF-3042, Mimaki UJF-3042FX, Mimaki UJF-3042HG, Mimaki UJF-6042
