Description

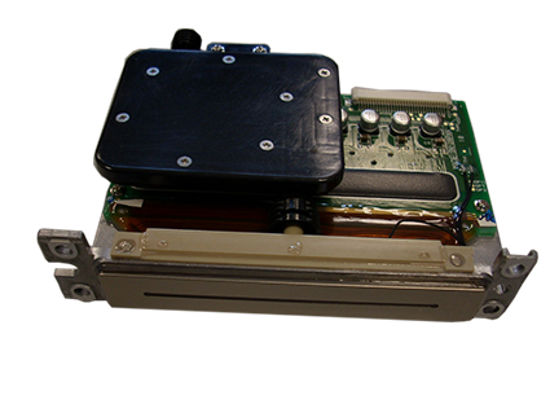

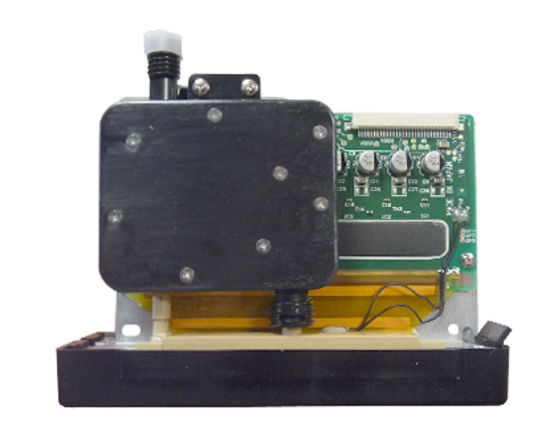

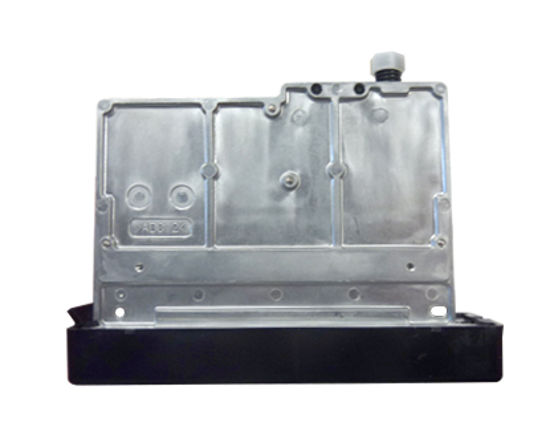

The Seiko SPT510 drop on demand piezo printhead is compatible with a wide-range of grand-format digital printers, including Infiniti printers FY 3206. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (35 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common128 printheads. This IRH1513D-3322/3311 printhead replaces the IRH1513D-1321 version

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Specifications

– Compatible with Oil, UV and solvent inks
– Technology: Drop on demand Piezo Electric- Linear Print Speed: 0.49 m/sec@360dpi
– Active Nozzles: 510
– Native Resolution: 180 dpi
– Max Resolution: 720 dpi
– Drop Volume: 35 pl
– Firing Frequency: 6-8 Khz
– Linear Print Speed: 0.49 m/sec@360dpi
– Proprietary parrallel I/F: 30 pins

This printhead carries a manufacturer warranty. Country of origin : Japan

We recommend to change the head cables when installing a new printhead.
