Description

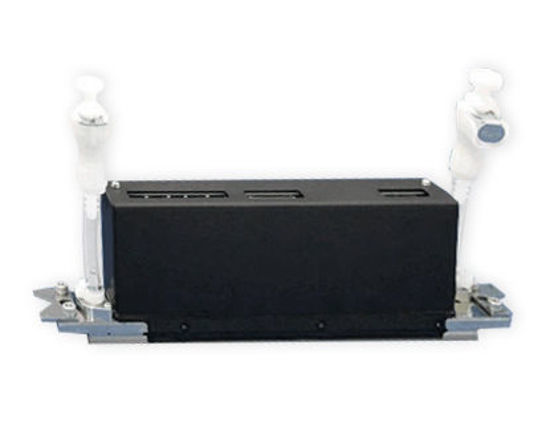

The Kyocera KJ4A-AA / KJ4A-AL is designed for UV-curable inks or other high viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset Surprint and others. It is a 600dpi one colour printhead with a maximum drive frequency of 20kHz. It delivers high quality with a small drop volume of 3pl at 50 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe.
The Kyocera KJ4A-AA / KJ4A-AL is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply. We recommend to change the head cables when installing a new printhead. The Kyocera KJ4A-AL is replacing the Kyocera KJ4A-AA.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications
- Ink Type: UV Ink
- Dimensions: 200 × 25 × 57.9mm
- Dry Weight: 420g
- Total Nozzles: 2.656
- Standard Resolution: 600 x 600 dpi
- Print Width: 108.25mm
- Max. Drive Frequency: 20kHz
- Drop Volume: 3, 6, and 13pl
- Max. Sprint Speed: 50m/min
- Optimum Ink viscosity: 6.0 – 7.0 mPa*s
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
