Konica1024/14pl mhb printhead 1024 mhb uv printer print head supplier

Konica1024/14pl mhb printhead original printhead original and new head

Product Specification:

  • Technology : Piezo Drop on Demand (Shared wall 3 cycle)
  • Resolution : 180dpi × 2lines = 360dpi
  • Number of Nozzles : 512nozzles × 2lines = 1024nozzles
  • Nozzle Pitch:70.5m (141m 2lines) :
  • Max Frequency:12.8 kHz :
  • Weight:150g :
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

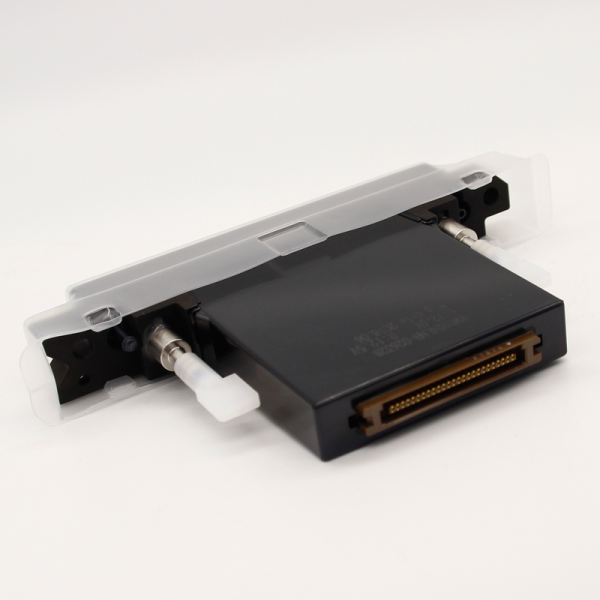

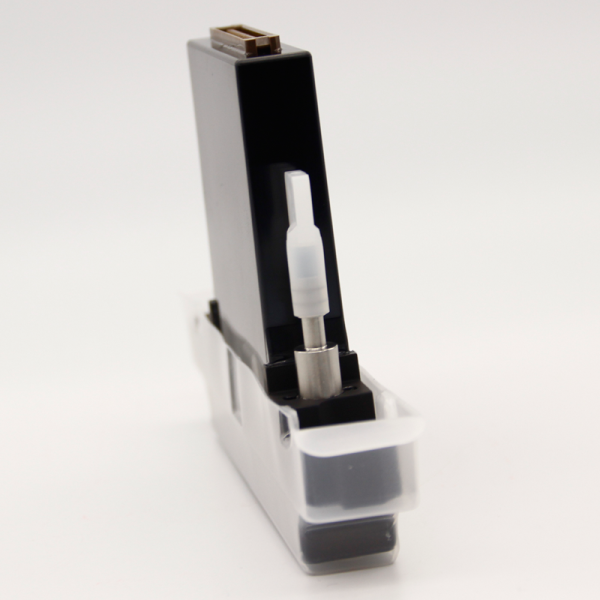

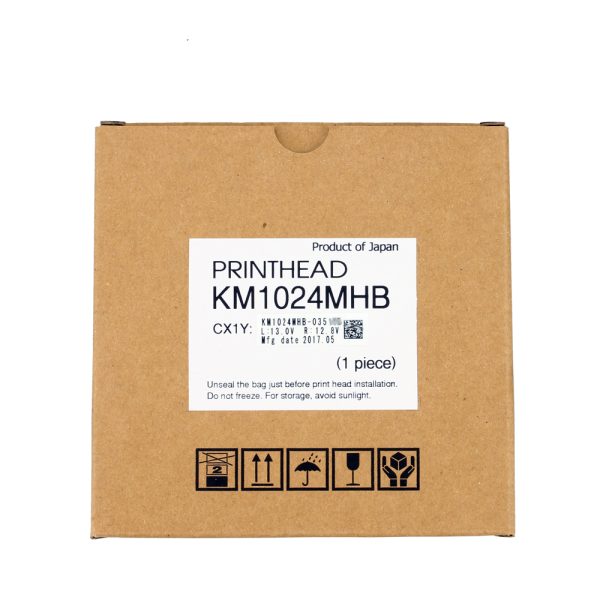

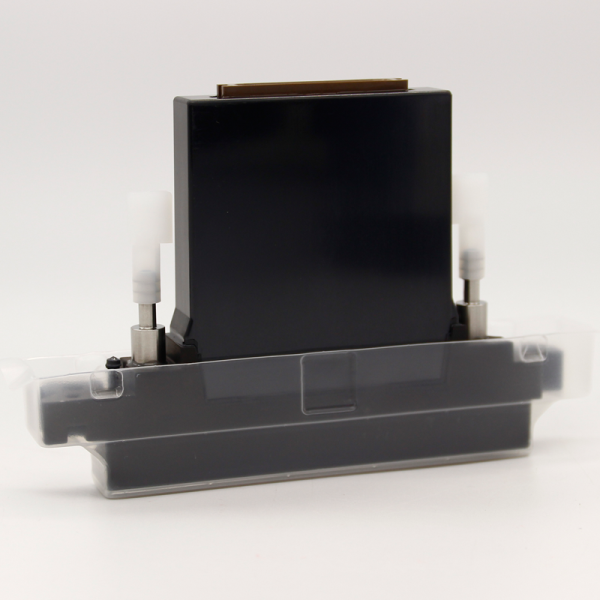

Konica 1024/14 pl MHB Print Head

 Product Details



Product Name Konica1024/14pl mhb printhead
Type Print Head
Drop Size 14 pl
Printing Width 72mm
Dimensions W131mm × D18mm × H89mm
