Description

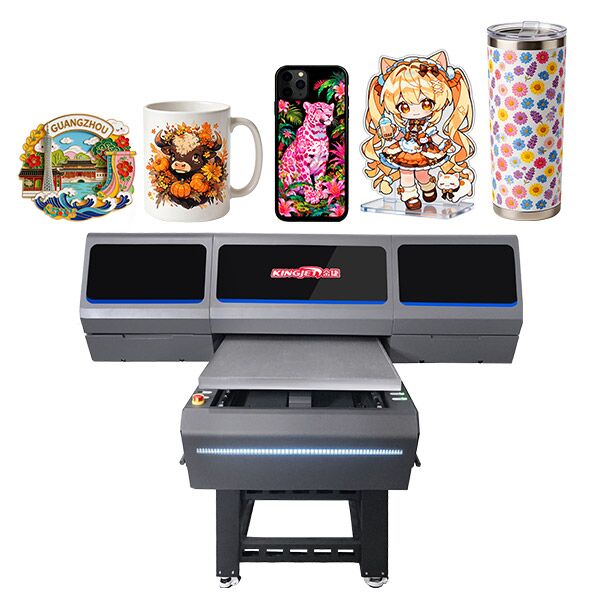

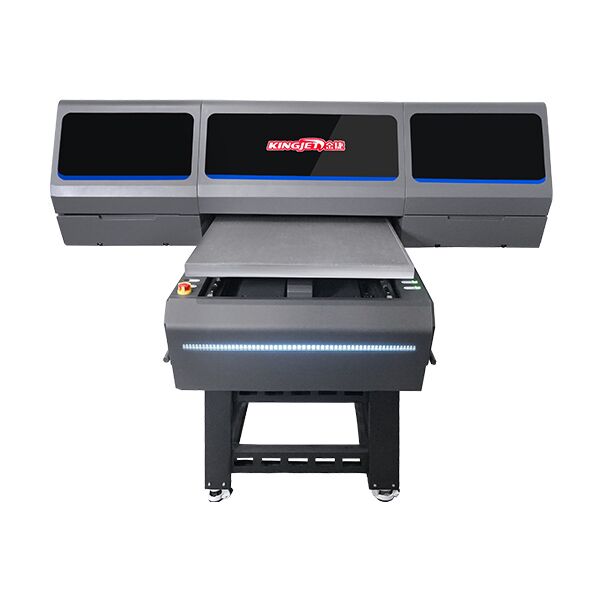

The multifunctional, high-precision 6090 flatbed UV printer is designed for personalized customization and small-batch production. It is compatible with almost all materials, and prints on irregularly shaped objects with ease. The I3200 head provides high-precision output with vibrant colors, making it a flexible, reliable, and efficient choice for enterprises to print high-end promotional items and various substrates.
| Model | KJ-6090P UV Flatbed Printer | ||
| Printhead Number | 3-4 pcs | ||
| Printhead Type | I3200 U1 | I1600 U1 | XP600 |
| Print Resolution (6 Pass) | 720*1800 dpi | 720*1800 dpi | 360*1080 dpi |
| Printing Speed (Flatbed Mode) | Output (sqm/h) | ||
| 6 Pass (Production Mode | 4.64 m²/h | 2.32 m²/h | 1.88 m²/h |
| 8 Pass (Quality Mode | 3.63 m²/h | 1.81 m²/h | 1.45 m²/h |
| Printing Size | Flatbed mode: 600*900mm; Roll to roll mode: 600mm |
||
| Ink Configuration | CMYKWV (Supports expansion to 8 colors: LcLmLkLLk/neon colors) | ||
| Ink Type | Environmental UV ink | ||
| UV Curing System | UV-LED water-cool curing | ||
| Ink Supply | Negative ink supply and white ink stirring | ||
| Application | Ceramic, wood, glass, metal, acyclic, KT board, crystal, leather, PVC, ABS etc. | ||
| Optional Fixtures | Supports phone-case fixture, cylindrical fixture, UV DTF fixture, pen fixture, and mug fixture. | ||
| Optional Visual Positioning System | Two resolutions are available: 600 dpi and 1200 dpi. | ||
| RIP Software | RIIN/Flexi | ||
| Input Power | AC 220V/110V, 50-60Hz | ||
| Operation Environment | Temperature 15-35°C, humidity 20-60% | ||
| Machine Size | 1780*1400*850mm, 250kg | ||
| Package Size | 1900*1550*1060mm, 332kg, 3.12cbm | ||
