Description

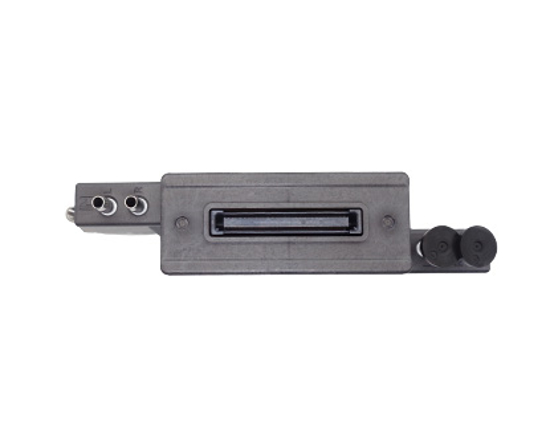

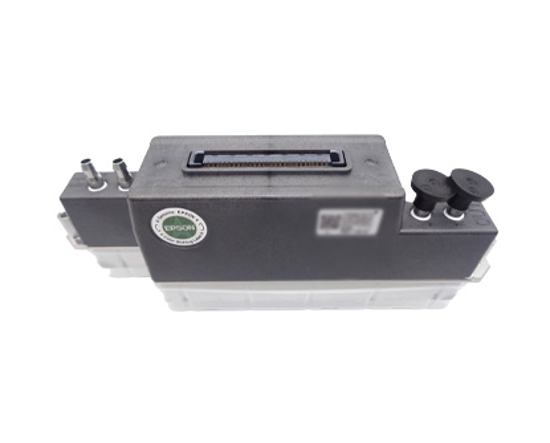

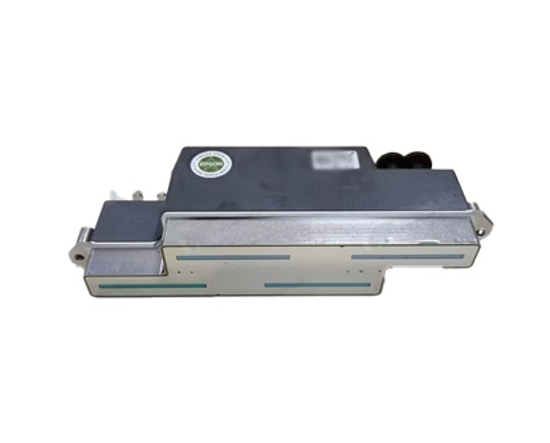

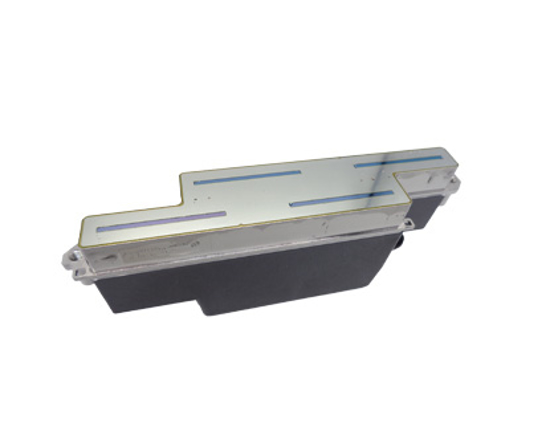

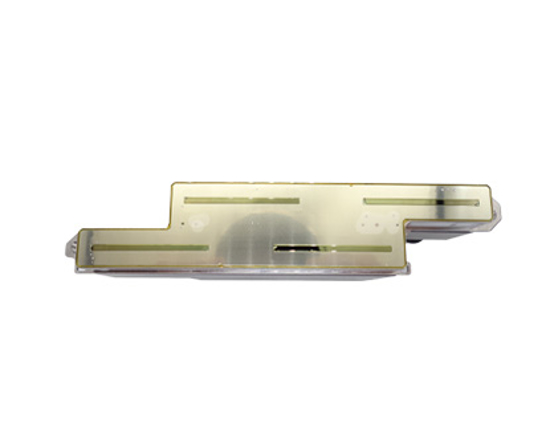

This Epson S3200-U3-2 printhead is suitable with chinese brand printers.
We recommend to change the head cables when installing a new printhead.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Product Specifications
- Technology : PrecisionCore Technology
- Ink Type : UV
- Width x Depth x Height : 150.4 × 30 × 52 mm
- Weight: 235 g
- Number of nozzle: 3200 (Net: 2840)
- Nozzle pitch / nozzle row : 1/300inch
- Nozzle rows : 2 rows
- Nozzle Resolution : 300 npi/row 600 npi/2 rows
- Max. number of color inks : 2 colors (300dpi)
- Effective print width : 120.2 mm (4.73 inches)
- Droplet (pl) : 4.8-9-15
- Viscosity range (mPa·s): 8~9
- Country of origin: Japan
